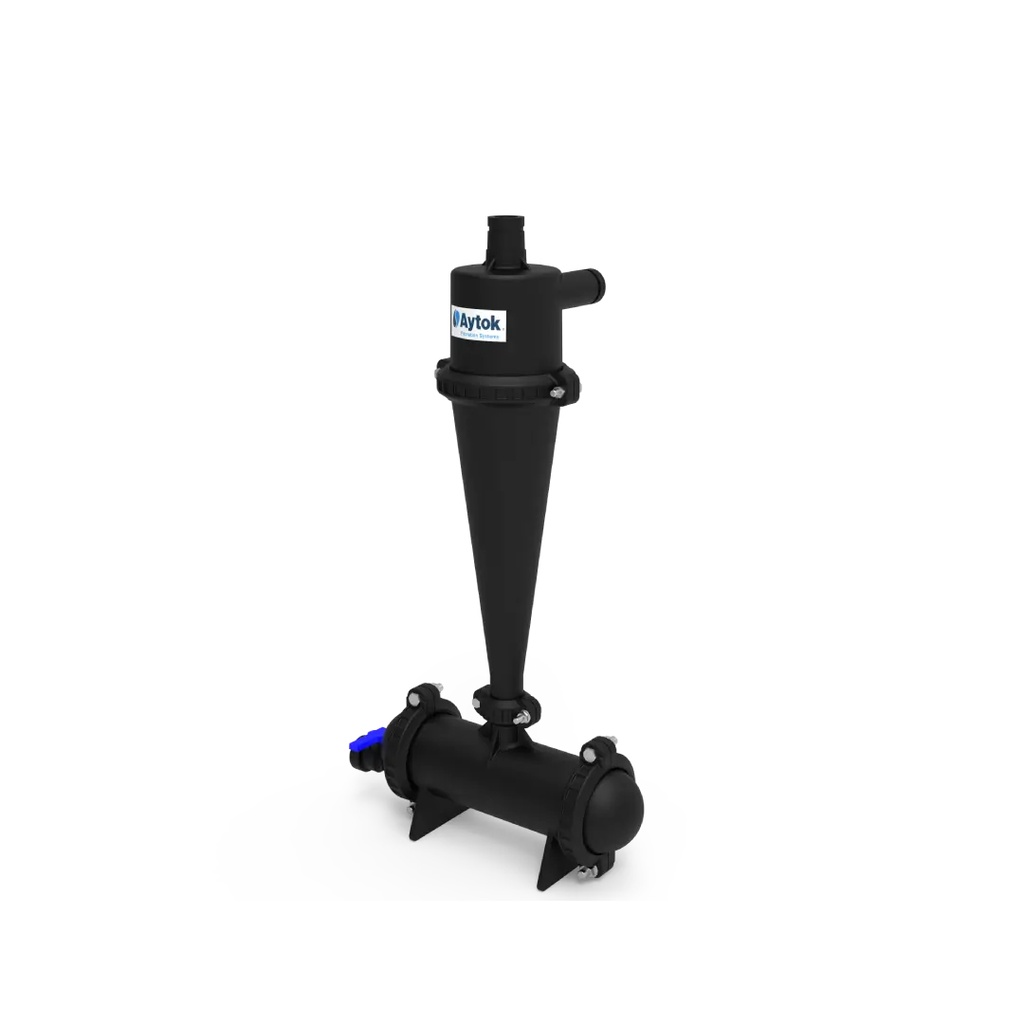

Plastic Hydrocyclone - 2" - Aytok

General Characteristic

• Body Material :  PAGFR30
• Maximum Working Pressure :  6 Bar (87 PSI)
• Maximum Working Temperature: 60 °C/ 140 °F

Working Principle and Washing Operation

• Aytok Hydrocyclones: Designed with a simple structure for filtration of well water or water containing sand, gravel, and heavier particles than water.

• Primarily utilized as the first filter element in agricultural irrigation filter systems.

• Function to achieve maximum efficiency while causing minimal pressure loss within irrigation setups.

• Solid particles heavier than water are separated by the hydrocyclone, falling down from its narrowing conical part into a waste chamber (sand tank).
• Clean water, devoid of solid particles, is then transmitted to the system through the outlet pipe.

• Accumulated particles are discharged from the lower tank (sand tank) using the discharge valve.
• During installation, attention must be given to the Inlet and Outlet directions for proper connection to the line.
